Wind Power

Hopewind's offshore wind power converter inherits and carries forward the high-performance and high-reliability genes of Hopewind converters. It adopts optimized software control algorithms and highly reliable environmental adaptability designs and implements strict product standards. The product uses high-standard corrosion-resistant materials to create a cabinet with a high protection level. It is equipped with a complete heating and dehumidification system inside, which has extremely high tolerance to harsh environments such as salt spray, mold, and vibration. It is equipped with a remote operation and maintenance system, which can perform perfect system monitoring and fault diagnosis and facilitate the networking of wind farm converters. The innovative grid-friendly key technology is suitable for the harsh grid environment caused by long-distance offshore power transmission and the distributed capacitance characteristics of submarine cables, providing guarantee for the continuous and stable operation of offshore wind farms.


advantage
Intelligent operation and maintenance

Remote debugging and detection

One-click troubleshooting of faults

Redundant configuration

Supports redundant design of the whole machine and whole machine backup

Supports fault redundancy and cut off the faulty module machine online

Supports redundant control system and adopts an innovative control system architecture

​High efficiency

Adopts modular design

The power density is increased by 100%

Energy-saving standby mode to increase power generation revenue

High reliability

Stronger grid adaptability

Good typhoon resistance and vibration resistance

Corrosion-resistant materials

High protection level of IP54

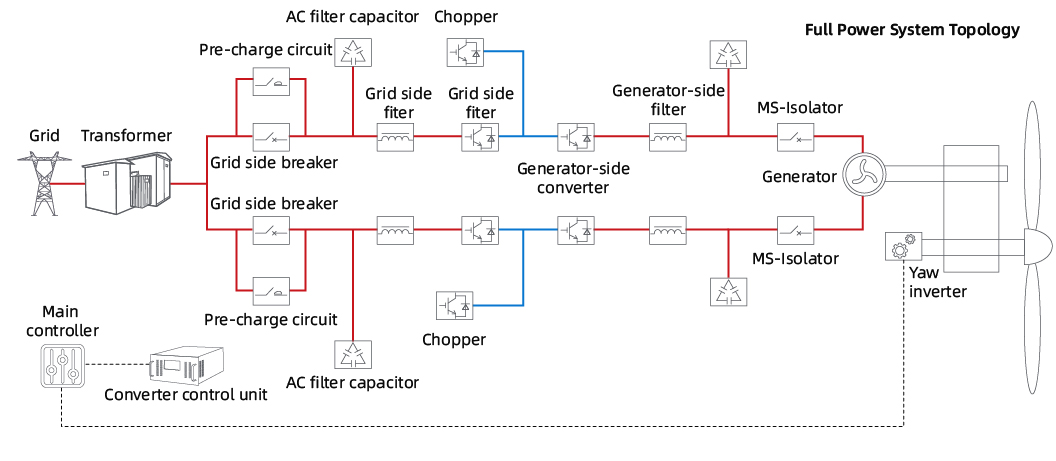

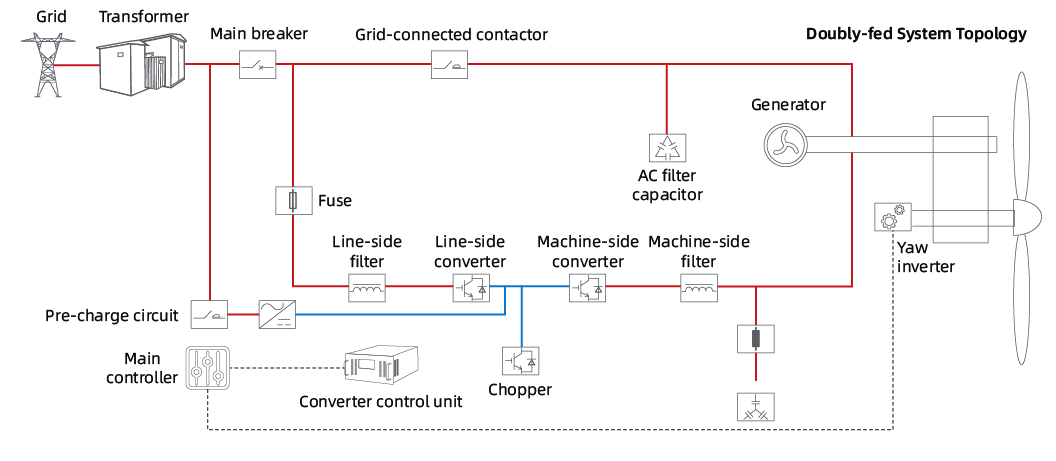

System Schematic Diagram
