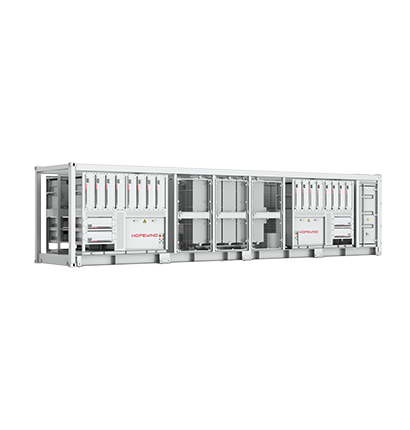

HPPS Series 7.5MW String PCS Turnkey Station
-7.5MW within Standard 40ft container to reduce floor space
-Rack-level management for batteries to address the issue of circulating current in parallel connections
-Modular design to prevent single point of failure, easy maintenance
-Strong environmental adaptability with C4~C5 anti-corrosion degree available, and no derating at 45°C
-Flexible capacity configuration and customizable MV voltage level of 6~35kV
-PQ, VF, VSG working modes with grid-forming function
main parameters
ModelHPPS-7500B
DC Parameters
Number of DC Input Channels36
Max. DC Current281A*36
DC Voltage Operating Range1000~1500V
AC Parameters
Total Rated Power7500kW
Max. Output Power8250kVA
Rated Voltage690Vac
Isolation ModeTransformer   Isolation
Reactive Power Range0~7875kvar
On-grid Mode
Rated Grid Voltage6~35kV   (customizable)
Rated Grid Frequency50Hz / 60Hz
THDi<3%
Power Factor-1~1
Transformer Parameters
Rated Capacity7700kVA
Transformer TypeOil-immersed   Transformer
LV/MV Voltage0.69 / 0.69 /   (6~35)kV
System Parameters
Dimensions (W*H*D)12192*2896*2438mm
Weight34t
Operating Temperature-40~+60(derating above 45)
Operating Humidity0~100%
Operating Altitude≤4000m (no   derating within 3000m)
Protection DegreeIP54 (PCS IP66)
BMS CommunicationRS485 / CAN
EMS CommunicationEthernet
Communication ProtocolModbus TCP /   IEC 61850 / IEC 104 / Modbus RTU / CAN 2.0
Standard ComplianceGB/T   34120-2023, IEC 62477-1, IEC 61000-3/-6, EN 50549-1/-2/-10, IEC60068-2, G99,   VDE 4110/4120, NTS 2.1,

IEC TS 62910,   etc. (Please contact Hopewind team for latest certification. )
Grid SupportH/LVRT,   frequency adjustment function, voltage adjustment function, inertia response,   etc.
