Hopewind PV Products-Hopewind

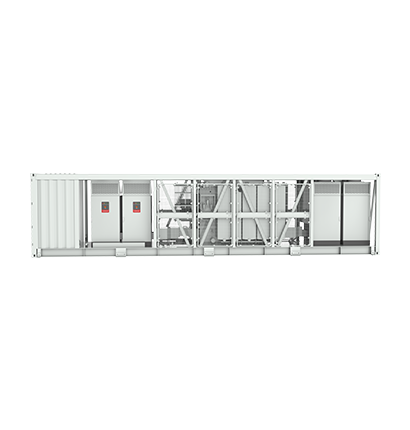

-4 sets of 2.5MW central PCS integrated into a 10MW turnkey station to reduce floor space
-Strong environmental adaptability with C4~C5 anti-corrosion degree available
-PCS Liquid Cooling, operates at 1.1 times power at 45°C and no derating up to 51°C
-Multiple working modes supported such as PQ and VSG. Satisfy grid-forming functions
-Power module is less than 13kg, Easy maintenance
-Flexible capacity configuration and double network redundancy design

main parameters

Model	HPPS-10000	HPPS-10000A
DC Parameters
Number of DC Input Channels	8	4
Max. DC Current	1406A*8	2812A*4
DC Voltage Operating Range	1000~1500V
AC Parameters
Total Rated Power	10000kW
Max. Output Power	11000kVA
Rated Voltage	690Vac
Isolation Mode	Transformer Isolation
Reactive Power Range	0~10500kvar
On-grid Mode
Rated Grid Voltage	33/35kV (customizable)
Rated Grid Frequency	50Hz / 60Hz
THDi	<3%
Power Factor	-1~1
Transformer Parameters
Rated Capacity	10500kVA
Transformer Type	Oil-immersed Transformer
LV/MV Voltage	0.69 / 0.69 / (33 / 35) kV
System Parameters
Dimensions (WHD)	1219228962438mm
Operating Temperature	-40~+60℃ (PCS derating above 51℃, transformer derating is optional for above 40℃ to 51℃)
Operating Humidity	4%~100%, No condensation allowed inside
Operating Altitude	≤4000m (no derating within 3000m)
Protection Degree	IP54 (PCS IP66)
BMS Communication	RS485 / CAN
EMS Communication	Ethernet
Communication Protocol	Modbus TCP / IEC 61850 / IEC 104 / Modbus RTU / CAN 2.0
Standard Compliance	IEC 61683, IEC 60068, IEC 62116, IEC TS 62910, etc. (Please contact Hopewind team for latest certification. )
Grid Support	H/LVRT, frequency adjustment function, voltage adjustment function, inertia response, etc.
