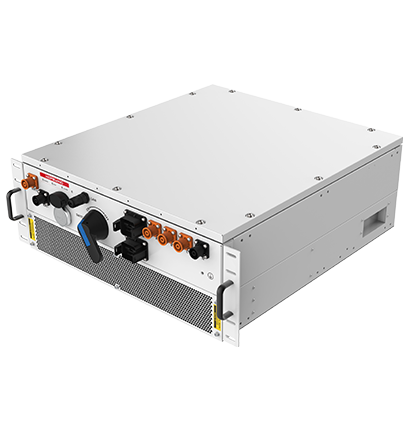

ESNV Series 130kW C&I PCS

1000V - Air cooling type

Performance characteristics

C&I product

C&I product with battery rack DC-switches

Modular Design

Modular design, easy to maintain

100% Unbalanced Load

Three-phase four-leg topology supports 100% unbalanced load

Safe and Reliable

IP66 protection degree for harsh environment

Operating Mode

PQ, VSG operating mode

main parameters

Model	ESNV130K-AI-G01
DC Input
DC Voltage Range	650~950V
Max. DC Current	230A
AC Output
Rated Power	130kW
Max. Output Power	143kW
Reactive Power Range	0~136.5kvar
AC Connection	3W+N+PE
Isolation	Non-isolated
On-grid
Rated Grid Voltage	400V
Voltage Range	340~440V
Rated Grid Frequency	50Hz / 60Hz
Frequency Range	45~55Hz / 55~65Hz
THDi	<3% (at rated power)
Power Factor	-1~1
Off-grid
Rated Output Voltage	400V
Voltage Imbalance	<2% (steady-state), ≤4% (transient)
THDu	<3% (no load or rated resistive load)
General Data
Grounding System	IT / TT / TN
Operating Ambient Temperature Range	-40~+60℃ (derating above 45℃)
Allowable Relative Humidity Range	0~95%
Allowable Altitude Range	<4000m (derating above 3000m)
Anti-corrosion Class	C4 (C5 optional )
Surge Protection	Type ІІ surge protective device (8 / 20μs)
Protection Degree	IP66
Communication Interface	Ethernet / RS485 / CAN
Communication Protocol	Modbus TCP / Modbus RTU / CAN 2.0
Dimensions (WHD)	811643263mm (excludes hanging board)
Weight	≤85kg (net weight)
Standard Compliance	IEC 62477 and IEC 61000 (In progress) (Please contact Hopewind team for latest certifications)

Note: The parameters depicted in the ESNV130K-AI-G01 datasheet are preliminary version and shall not serve as a binding reference for product performance compliance. The final product specifications shall prevail per the actual shipped products.
