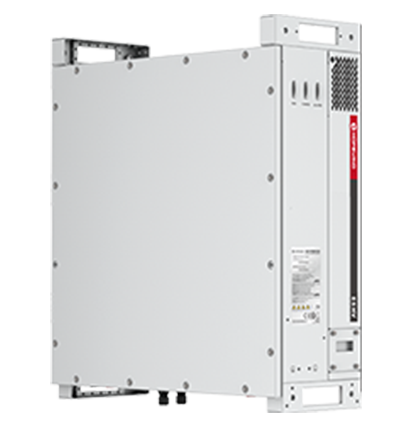

ESHV Series 145~250kW String PCS
1500V | 3phase | AC/DC Type
Performance characteristics
High Power Density
Small size & high power density
Modular Design
Modular design enables accurate management of battery
Safe and Reliable
IP66 & optional C4~C5 anti-corrosion degree for harsh environment
Support Parallel Connection
Support up to 24 units in parallel connection
Support Grid-forming Function
Equipped with grid-forming function
Quiet Operation
Variable-speed fans for quiet operation
main parameters
ModelESHV145K- A-G01ESHV186K- A-G01ESHV200K- A-G01ESHV215K- A-G01ESHV250K- A-G01
DC Input
DC Voltage Range580~1500V1000~1500V
Max. DC Current281A209A225A242A281A
AC Output
Rated Power145kW186kW200kW215kW250kW
Max. Output Power160kW205kW220kW237kW275kW
AC Connection3W+PE
IsolationNon-isolated
Grid-forming FunctionSupport
On-grid
Rated Grid Voltage400V690V
Voltage Range340~440V586.5~759V
Rated Grid Frequency50Hz / 60Hz
Frequency Range45~55Hz / 55~65Hz
THDi<3% (at rated power)
Power Factor-1~1
Charge/Discharge Switchover Time<20ms
Off-grid
Rated Output Voltage400V690V
Voltage Imbalance<2% (steady-state), ≤4% (transient)
THDu<3% (no load or rated resistive load)
Overvoltage ProtectionSettable
Undervoltage ProtectionSettable
General Data
Grounding SystemIT
Operating Ambient Temperature Range-40~+60(derating above 45)
Allowable Relative Humidity Range0~95%
Allowable Altitude Range<4000m (derating above 3000m)
DI Port4
DO Port2
Anti-corrosion ClassC4 (C5 optional)
Surge ProtectionDC Type II / AC Type II
Wiring MethodBottom in and bottom out (via quick plug   terminals)
Protection DegreeIP66
Cooling MethodSmart Air-cooling
IndicatorLED Indicator
Communication InterfaceEthernet / RS485 / CAN / Local debugging WiFi   (optional)
Communication ProtocolModbus TCP / Modbus RTU / CAN 2.0
Dimensions (W*D*H)795*294*915mm (excludes hanging board)
Weight≤100kg (net weight)
Standard ComplianceIEC 62477-1ESHV250K-A-G01: EN 50549-1/-2/-10, GB/T   34120-2023, IEC 62477-1, IEC 61000, IEC60068-2, G99, VDE 4110/4120, NTS V2.1,   NTSV1.1 CEI 0-16, IEC TS 62910, etc. ESHV186K~215K-A-G01: IEC 62477-1, IEC   61000, IEC62920, NTS V2.1. NTS V1.1

(Please contact Hopewind team for latest   certifications)
