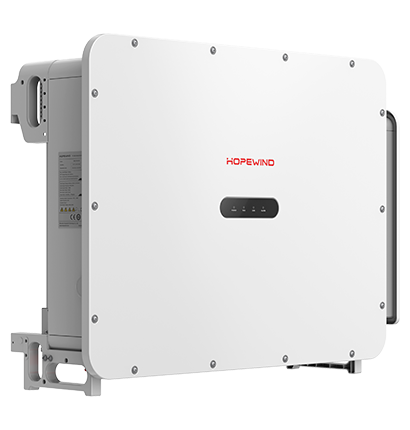

The most powerful C&I string inverter is perfectly compatible with 182/210 modules and supports full-load operation at 45°C. It not only has IP66 protection and C5 corrosion resistance but also supports AFCI DC arc protection, smart fan reverse dust removal, 1V1 temperature sensing detection and other functions, making the product operation safer and more reliable. It is suitable for large industrial and commercial roofs or village-level power stations, and can be installed manually without the assistance of lifting machinery.

Performance characteristics

Efficient Power Generation

• 6 MPPTs is adaptable to complex environment, maximizes power generation
• MPPT current of 65A, fully compatible with 180/210 modules
• Supports full-load operation at 45℃ , minimizes power generation losses
• Supports PID recovery function, enhances system power genration

Safe and Reliable

• IP66 ingress protection, a strong environmental adaptability
• Built-in AC/DC SPD for comprehensive lightning protection
• Equipped with intelligent DC disconnection functions for higher safety
• Featuring temperature detection for both AC and DC terminals, enhances safety and reliability

Economical and Eco-friendly

• Supports Wi-Fi and PLC communication, ensures low construction costs
• Supports up to 400mm² of aluminum wire connections, reduces cable costs
• Higher capacity ratio, redues LCOE (Levelized Cost of Electricity)

Smart and User-friendly

• High-precision intelligent string detection, smart
• IV curve scanning, and accurate fault identification
• Equipped with HVRT/LVRT function, strong adaptability to weak grid with SCR technology

main parameters

Model	HSNV125K-G01	HSNV150K-G01
DC Input
Max. Input Voltage	1100 V
Starting Voltage	200 V
MPPT Voltage Range	200~1000 V
MPPT Range Full Load	550~850 V
Max. Input Current Per MPPT	65 A
Max. Short-circuit Current Per MPPT	97.5 A
Max. Number of DC Input	4 × 6
Number of MPPTs	6
AC Output
Rated Output Power	125 kW	150 kW
Max. Output Apparent Power	137.5 kVA	165.0 kVA
Rated Output Voltage	400 V (3P + N + PE)
Rated Voltage Range	300~520 V
Rated Output Current	180.4 A	216.5 A
Max. Output Current	198.5 A	238.2 A
Rated Frequency	50 Hz / 60 Hz
Power Factor	0.8 leading~0.8 lagging
Harmonic (THDi)	<3%
Efficiency
Max. Efficiency	98.60%	98.80%
European Efficiency	98.30%
Protection
Surge Protection	DC type II / AC type II
Insulation Impedance Detection	Yes
Residual Leakage Current Detection	Yes
PV String Connection Detection	Yes
PV Reverse Polarity Protection	Yes
Anti-islanding Protection	Yes
Zero Export Function	Yes
Output Overcurrent Protection	Yes
Output Short-circuit Protection	Yes
Arc Fault Circuit Interrupter (AFCI)	Yes
PID	Yes
DC Switch	Yes
Optional	Smart I/V curve diagnosis
General Parameters
Dimensions (W × H × D)	1132 × 847 × 385 mm
Weight	≤110 kg
Ingress Protection	IP66
Operating Temperature	-40~+60℃ (>45℃ derating)
Cooling System	Smart air cooling
Anti-corrosion	C5 (optional)
Storage Temperature	-40~+70℃
Humidity	0~100% (non-condensation)
Topology	Transformerless
Operating Altitude	4000 m
Display	LED indicator + APP
Communication	RS485 / Wi-Fi / PLC
DC Connection Type	DC connector (4~6 mm²)
AC Connection Type	OT / DT terminal (≤400 mm²)
