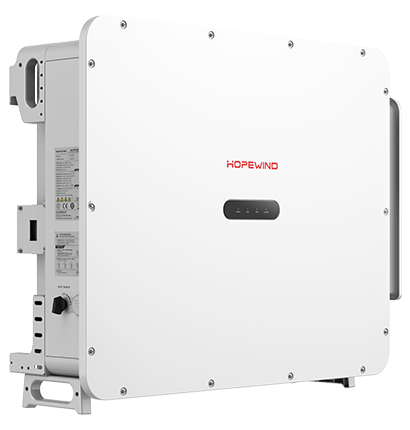

Hopewind PV Products-Hopewind

• 65A MPPT current, compatible with all types modules
• Full power operation at high temperature of 45℃ (385K@40℃）
• Advanced SIC design, better efficiency & life time

More Reliable

• IP66 & C5 anti-corrosive for harsh environment
• Low SCR, compatible with weak grid situations
• AFCI, DC&AC temperature protection with smart DC switch
• Explosion relief valve for on-site personal safety

Lower Cost

• Compatible with Aluminium cable of AC-side
• PLC communication to reduce wiring costs
• PID recovery & SVG

Convenient O&M

• Integrated with Aux. switch, initial debugging at any time
• 24/7 continuously monitoring
• Fault waveform recording on hopeCloud
• Smart IV curve diagnosis

main parameters

Model	HSHV320K-G02	HSHV330K-G02	HSHV350K-G02	HSHV385K-G02
DC Input
Max. Input Voltage	1500 V
Starting Voltage	550 V
MPPT Voltage Range	500~1500 V
MPPT Range Full Load	960~1300 V
Max. Input Current Per MPPT	65 A
Max. Short-circuit Current	97.5 A
Number of DC Inputs	8 × 4
Number of MPP Trackers	8
AC Output
Rated Output Power	320 kW	330 kW	350 kW	385 kW
Max. Output Power	320 kW	330 kW	350 kW	385 kW
Rated Output Voltage	800 V (3P + PE)
Operating Voltage Range	640~920 V
Rated Output Current	230.9 A	238.2 A	252.6 A	277.9 A
Max. Output Current	230.9 A	238.2 A	252.6 A	277.9 A
Rated Grid Frequency	50 Hz / 60 Hz
Grid Frequency Range	45~55 Hz / 55~65 Hz
Power Factor	>0.99 (0.8 leading~0.8 lagging)
Harmonic (THDi)	<3% (at rated power)
Efficiency
Max. Efficiency	99.01%
European Efficiency	98.70%
Protection
Surge Protection	DC type II / AC type II
Insulation Impedance Detection	Yes
Residual Leakage Current Detection	Yes
PV String Connection Detection	Yes
PV Reverse Polarity Protection	Yes
Anti-islanding Protection	Yes
Output Overcurrent Protection	Yes
DC Switch	Yes
PID Recovery	Yes
SVG Function	Yes
Optional	AFCI, smart IV curve diagnosis
General Parameters
Dimensions (W × H × D)	1208 × 967 × 396 mm
Weight	155 kg
Protection Degree	IP66
Operating Temperature Range	-30~+60℃ ①
Cooling System	Smart air cooling
Topology	Transformerless
Operating Altitude	4000 m (>3000 m derating)			4000 m (>2000 m derating)
Display	LED indicator, Wi-Fi / APP
Communication	RS485 / PLC
DC Connection Type	DC connector (4~6 mm²)
AC Connection Type	OT / DT terminal (≤400 mm²)

① Able to start at -40℃.
