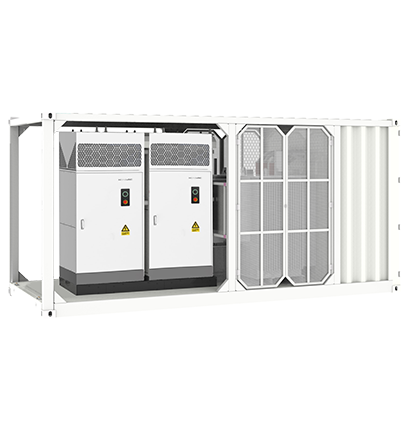

HPPS Series 5MW Central PCS Turnkey Station

Customizable MV voltage level of 6~35kV

Performance characteristics

Small Footprint

2 sets of 2.5MW central PCS integrated into a 20 feet container to reduce floor space

Safe and Reliable

Strong environmental adaptability with C4~C5 anti-corrosion degree available

Liquid Cooling

PCS liquid cooling, no derating up to 51°C

Comprehensive Functions

Multiple operating modes supported such as PQ and VSG. Satisfy grid-forming functions

Customised Design

Flexible capacity configuration and customizable MV voltage level of 6~35kV

main parameters

Model

HPPS-5000

HPPS-5000A

DC Parameters

Number of DC Input Channels

4

2

Max. DC Current

1406A*4

2812A*2

DC Voltage Operating Range

1000~1500V

AC Parameters

Total Rated Power

5000kW

Max. Output Power

5500kW

Rated Voltage

690Vac

Isolation Mode

Transformer Isolation

Reactive Power Range

0~5250kvar

On-grid

Rated Grid Voltage

6~35kV (customizable)

Rated Grid Frequency

50Hz / 60Hz

THDi

<3%

Power Factor

-1~1

Transformer Parameters

Rated Capacity

5250kVA

Transformer Type

Oil-immersed Transformer

LV/MV Voltage

0.69 / (6~35) kV

System Parameters

Dimensions (W*D*H)

6058*2438*2896mm

Operating Temperature

-40~+60℃ (PCS derating above 51℃, transformer derating is optional for 40℃ to 51℃)

Operating Humidity

4~100% (non-condensing)

Operating Altitude

≤4000m (no derating within 3000m)

Protection Degree

IP54 (PCS IP66)

BMS Communication

RS485 / CAN

EMS Communication

Ethernet

Communication Protocol

Modbus TCP / IEC 61850 / IEC 104 / Modbus RTU / CAN 2.0

Standard Compliance

PCS: EN 50549-2/-10, NTS V2.1, CEA, IEC 61683, IEC 60068, IEC 62116, IEC TS 62910, etc.
MV Transformer: IEC 60076
(Please contact Hopewind team for latest certifications)

Grid Support

H/LVRT, frequency adjustment function, voltage adjustment function, inertia response, etc.

*The table only lists some models. Products can be customized for projects.

*Please refer to the latest physical product for any changes in specifications.
