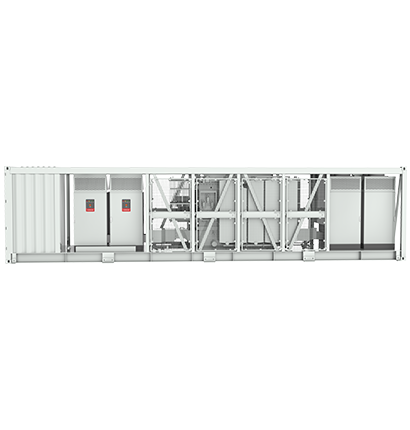

HPPS Series 10MW Central PCS Turnkey Station

Customizable MV voltage level of 33/35kV

Performance characteristics

Small Footprint

4 sets of 2.5MW central PCS integrated into a 40 feet container to reduce floor space

Safe and Reliable

Strong environmental adaptability with C4~C5 anti-corrosion degree available

Liquid Cooling

PCS liquid cooling, no derating up to 51°C

Comprehensive Functions

Multiple operating modes supported such as PQ and VSG. Satisfy grid-forming functions

High Efficiency

High efficiency and low self-Consumption

main parameters

Model	HPPS-10000	HPPS-10000A
DC Parameters
Number of DC Input Channels	8	4
Max. DC Current	1406A*8	2812A*4
DC Voltage Operating Range	1000~1500V
AC Parameters
Total Rated Power	10000kW
Max. Output Power	11000kVA
Rated Voltage	690Vac
Isolation Mode	Transformer Isolation
Reactive Power Range	0~10500kvar
On-grid Mode
Rated Grid Voltage	33 / 35kV (customizable)
Rated Grid Frequency	50Hz / 60Hz
THDi	<3%
Power Factor	-1~1
Transformer Parameters
Rated Capacity	10500kVA
Transformer Type	Oil-immersed Transformer
LV/MV Voltage	0.69 / 0.69 / (33 / 35) kV
System Parameters
Dimensions (WHD)	1219228962438mm
Operating Temperature	-40~+60℃ (PCS derating above 51℃, transformer derating is optional for 40℃ to 51℃)
Operating Humidity	4%~100% (non-condensing)
Operating Altitude	≤4000m (no derating within 3000m)
Protection Degree	IP54 (PCS IP66)
Communication Protocol	Modbus TCP / IEC 61850 / IEC 104 / Modbus RTU / CAN 2.0
Standard Compliance	PCS: IEC 61683, IEC 60068, IEC 62116, IEC TS 62910, etc. MV Transformer: IEC 60076(Please contact Hopewind team for latest certifications)
Grid Support	H/LVRT, frequency adjustment function, voltage adjustment function, inertia response, etc.

*The table only lists some models. Products can be customized for projects.

*Please refer to the latest physical product for any changes in specifications.
