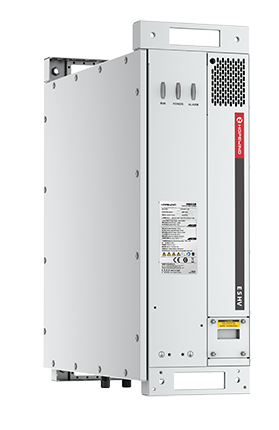

| Model | ESHV186K80- A-G01 | ESHV200K80- A-G01 | ESHV215K80- A-G01 | ESHV250K80- A-G01 | ESHV290K80- A-G01 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DC Input | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DC Voltage Range | 1160~1500V | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. DC Current | 180A | 194A | 208A | 242A | 281A | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AC Output | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rated Power | 186kW | 200kW | 215kW | 250kW | 290kW | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Output Power | 205kW | 220kW | 237kW | 275kW | 319kW | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AC Connection | 3W+PE | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Isolation | Non-isolated | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Grid-forming Function | Support | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| On-grid | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rated Grid Voltage | 800V | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Voltage Range | 680~880V | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rated Grid Frequency | 50Hz / 60Hz | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency Range | 45~55Hz / 55~65Hz | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| THDi | <3% (at rated power) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Factor | -1~1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Charge/Discharge Switchover Time | <20ms | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Off-grid | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rated Output Voltage | 800V | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Voltage Imbalance | <2% (steady-state), ≤4% (transient) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| THDu | <3% (no load or rated resistive load) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Overvoltage Protection | Settable | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Undervoltage Protection | Settable | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General Data | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Grounding System | IT | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Ambient Temperature Range | -40~+60℃ (derating above 45℃) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Allowable Relative Humidity Range | 0~95% | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Allowable Altitude Range | <4000m (derating above 3000m) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DI Port | 4 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DO Port | 2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Anti-corrosion Class | C4 (C5 optional) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Surge Protection | DC Type II / AC Type II | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wiring Method | Bottom in and bottom out (via quick plug terminals) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection Degree | IP66 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cooling Method | Smart Air-cooling | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Indicator | LED Indicator | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Communication Interface | Ethernet / RS485 / CAN / Local debugging WiFi (optional) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Communication Protocol | Modbus TCP / Modbus RTU / CAN 2.0 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions (W*D*H) | 795*294*915mm (excludes hanging board) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | ≤100kg (net weight) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Standard Compliance | IEC 61000, IEC 62920. (Please contact Hopewind team for latest certifications) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
