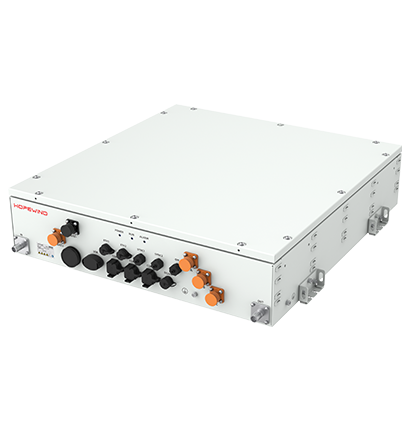

ESHV Series 215kW Liquid-cooling HV-box Integrated String PCS

1500V - AC/DC type

Performance characteristics

Highly Integrated design

Highly Integrated design with battery rack high voltage box and BCU

Ultra-low Noise Level

Liquid-cooling, ultra-low noise level (<65dB)

High Power Density

Small size & high power density

Safe and Reliable

IP66 protection degree for harsh environment

Support Parallel Connection

Supports multi-module parallel connection

Comprehensive Functions

PQ, VF, VSG operating modes with grid-forming function

main parameters

Model	ESHV215K-LI-G01
DC Input
DC Voltage Range	1000~1500V
Max. DC Current	209A
AC Output
Rated Power	215kW
Max. Output Power	236.5kW (10min @ liquid temperature below 58℃)
Reactive Power Range	0~236.5kvar (10min @ liquid temperature below 58℃)
AC Connection	3W+PE
Isolation	Non-isolated
On-grid
Rated Grid Voltage	690V
Voltage Range	586~759V
Rated Grid Frequency	50Hz / 60Hz
Frequency Range	45~55Hz / 55~65Hz
THDi	<3% (at rated power)
Power Factor	-1~1
Off-grid
Rated Output Voltage	690V
Voltage Imbalance	<2% (steady-state), ≤4% (transient)
THDu	<3% (no load or rated resistive load)
General Data
Grounding System	IT
Operating Ambient Temperature Range	-40~+60℃
Allowable Relative Humidity Range	0~95%
Allowable Altitude Range	<4000m (derating above 3000m)
Anti-corrosion Class	C4 (C5 optional )
Cooling Method	Liquid-cooling
Protection Degree	IP66
Communication Interface	Ethernet / RS485 / CAN / Local debugging WiFi (optional)
Communication Protocol	Modbus TCP / Modbus RTU / CAN 2.0
Dimensions (WHD)	745820180mm (excludes hanging board), 785820180mm (includes hanging board)
Weight	≤80kg (net weight)
Standard Compliance	IEC 62477 and IEC 61000 (In progress) (Please contact Hopewind team for latest certifications)
