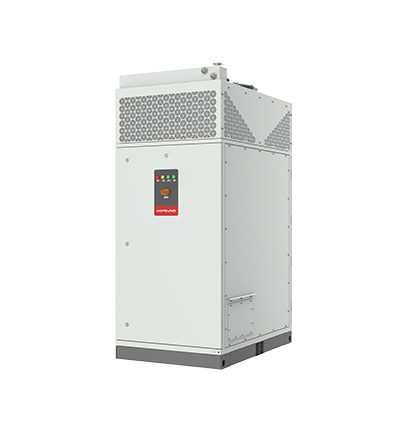

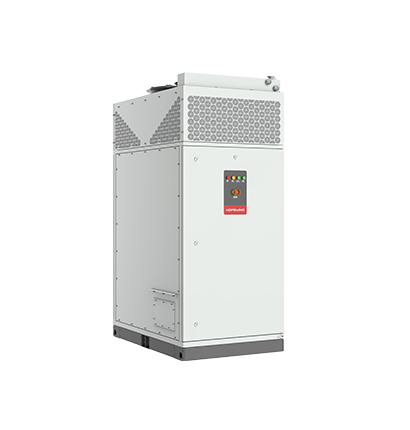

-Small footprint, only 1000*1500mm
-Innovative liquid cooling heat dissipation method, 51 °C without derating
-Ingress protection IP66 and anti-corrosion C5 (optional), High environmental adaptability
-1/2 DC inputs, compatible with single/dual-branch battery system
-PQ, VF, VSG working modes with grid-forming function

main parameters

Model	hopePCSHV1750	hopePCSHV2000	hopePCSHV2250	hopePCSHV2500	hopePCSHV2750
DC Input
DC Voltage Range	1000~1500V
Max. DC Current	984A*2	1125A*2	1265A*2	1406A*2	1406A*2
Number of DC Input Channels	1月2日
AC Input
Rated Power	1750kW	2000kW	2250kW	2500kW	2750kW
Max. Output Power	1925kW	2200kW	2475kW	2750kW	2750kW
Reactive Power Range	0~1837.5kVA	0~2100kVA	0~2363kVA	0~2625kVA	0~2750kVA
Rated Current	1464A	1673A	1883A	2092A	2301A
AC Connection	3W+PE
Isolation	Non-isolation
On-grid
Rated Grid Voltage	690V
Voltage Range	586.5~759V
Rated Grid Frequency	50Hz / 60Hz
Frequency Range	47Hz~53Hz / 57Hz~63Hz
Power Factor	-1~+1
THDi	3% (at rated power)
Charge-discharge Conversion	70ms
Off-grid
Rated Output Voltage	690V
Voltage Imbalance	2%, No more than 4% in a short period of time
THDu	<3% (no load or rated resistive load)
Voltage Transient Range	<10% (resistive load / balaced load. Load change suddenly from 20% to 100% or from 100% to 20%)
Overvoltage Protection	Settable value
Undervoltage Protection	Settable value
General Data
Ground System	IT
Operating Ambient Temperature Range	-40~+60℃
Allowable Relative Humidity Range	4%~100%, No condensation allowed inside
Allowable Altitude Range	≤4000m (no derating within 3000m)
Noise Level	75dB
Anti-corrosion degree	C4 (C5 is optional)
Protection Degree	IP66
Cooling Method	Liquid-cooling
Human-machine Interface (HMI)	Touch Screen
Communication Protocol	Modbus TCP / IEC 61850 / IEC 104 / Modbus RTU / CAN 2.0
Dimensions (WHD)	100024281500mm
Weight	1800kg
Grid Support	IEC 61683, IEC 60068, IEC 62116, IEC TS 62910, etc. (Please contact Hopewind team for latest certification. )
